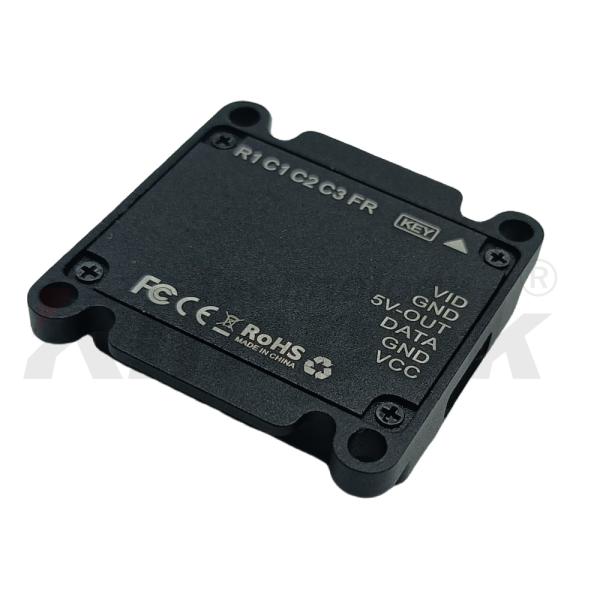

4.9G 5.8G 2.5W FPV VTX BEASTFPV VTX 64CH Image Transmission Drone Accessories

Name: 49G 58G 25W FPV VTX BEASTFPV VTX 64CH Image Transmission Drone Accessories
Brand: Kimpok
Price: 1 USD

Quality 4.9G 5.8G 2.5W FPV VTX BEASTFPV VTX 64CH Image Transmission Drone Accessories for sale

Brand Name : Kimpok

Model Number : KP-T4925

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 3000pcs/month

Delivery Time : 7 Working Days

Packaging Details : International Standard Packing

Type : Wireless Video Transmitter

Frequency : 4.9-5.8G

RF Power : 2.5W

Channel : 64CH

Working Voltage : 7-36V

Protocol : IRC Tramp

Contact Now

1.Video transmitter parameters

Working voltage	7-36V
Current consumption	≤450mA@12V, 800mW ≤850mA@12V, 2500mW
Output power	PIT/25mW/400mW/800mW/1500mW/2500mW
Frequency range	4.9GHz – 5.8GHz
Number of channels	64CH
Antenna connector	MMCCX
Video format	NTSC/PAL
Video transmitter protocol	VTX (IRC Tramp)
Completeness	VTX BeastFPV 4.9-5.8GHz 64CH x 1 4.8-6GHz 3DBi RHCP Antenna x 1 6Pin SH1.0 Wire x1

2.Functional diagram

7-36V IN	Input voltage 7-36V	DATA	VTX Video Transmitter Control Input (IRC Tramp)
Port	definition	interface	definition
5V-OUT	Output voltage 5V	VIDEO	Video signal input
GND	Ground wire (Minus)	GND	Ground wire (Minus)

3. Video transmitter power indicator:

RF POWER LED	25mW	400mW	800mW	1500mW	2500mW	Fault
R1	1time	2time	3time	4time	5time

5.Power adjustment:

This video transmitter has 5 power levels: 25/400/800/1500/2500 mW. To adjust the power, press and hold the button for 6 seconds, after which the video transmitter will go into the power adjustment mode. The power is selected in order by pressing the button once. The number of flashes (blinks) of the red indicator R1 will correspond to the selected power: 1 blink - 25 mW, 2 blinks - 400 mW, etc. (pay attention to: “3. Video transmitter power indicator”). To save the selected power, you must wait 5 seconds, after selecting the power - the video transmitter will save the value. (When adjusting the power of the video transmitter - the red power indicator R1 blinks, and the other indicators go out).

4.9G 5.8G 2.5W FPV VTX BEASTFPV VTX 64CH Image Transmission Drone Accessories

4.9G 5.8G 2.5W FPV VTX BEASTFPV VTX 64CH Image Transmission Drone Accessories Images
